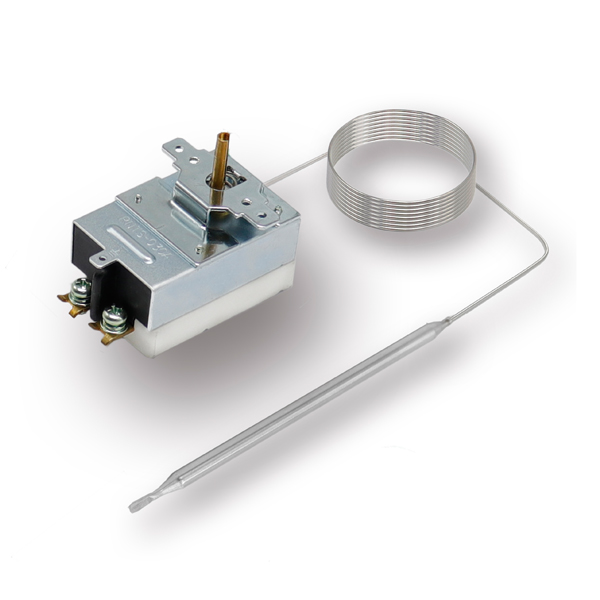

Adjustable Themostat

RNTS-Series

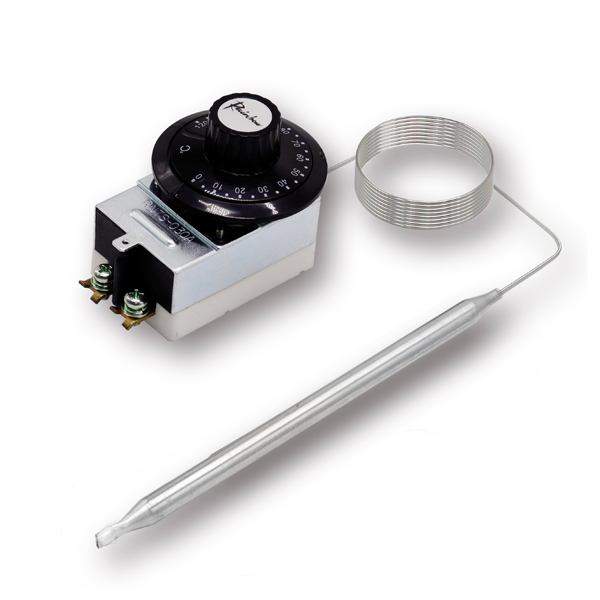

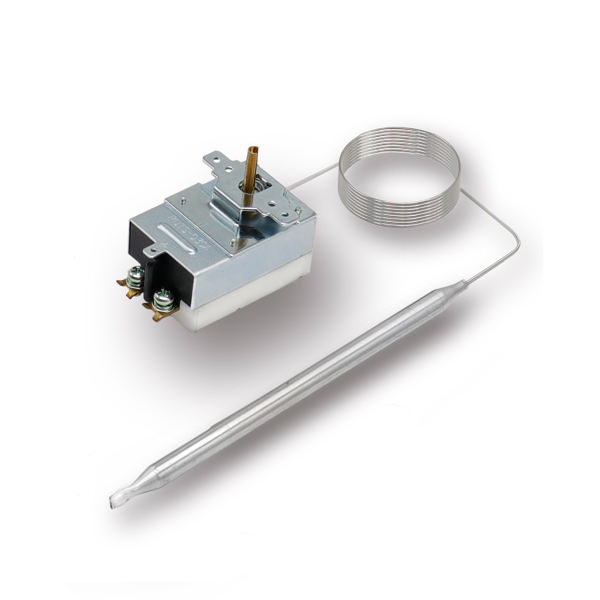

The RNTS Series is strong and durable product designed for
high Amperage applications and can be used up to 30A/250VAC,
allowing it to be installed/connected directly to a high-capacity heaters
without implementing magnet switches or separate relays.

Features

  • Temp Range : 0°C to 320°C
  • (-22°F to 608°F)
  • Bulb Materials : Stainless Steel or Copper
  • Capillary Tube Length : 1,000mm (250 to 2,000mm)
  • Electric Rating : 30A/250VAC
  • Switch Type : SPST
  • Direct connection possible without a relay

Applications

  • Commercial Kitchen Equipment
  • Factory & Industrial Facilities
  • Electric Boilers
  • Hot Water Heaters

Download

Main Model

Model Temp Range Electric Ratings Bulb Dimensions Switch Accuracy

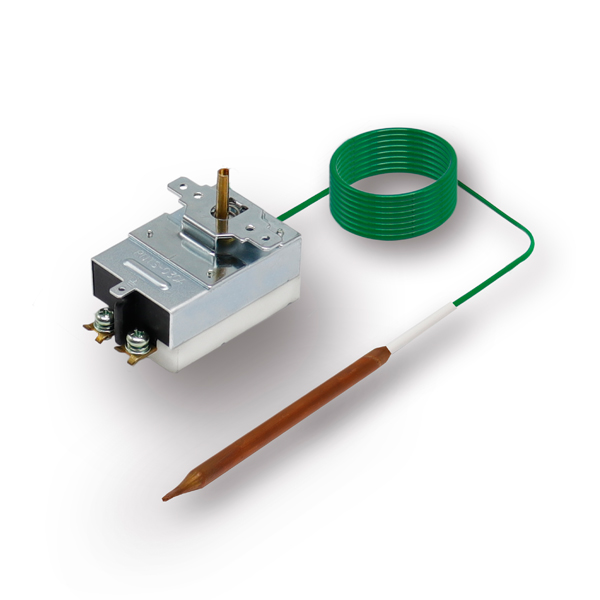

RNTS-090C 0°C~90°C 30A/250V Ø9.52 X 159mm SPST ±3°C Learn more...
  • RNTS-090C BASIC TYPE

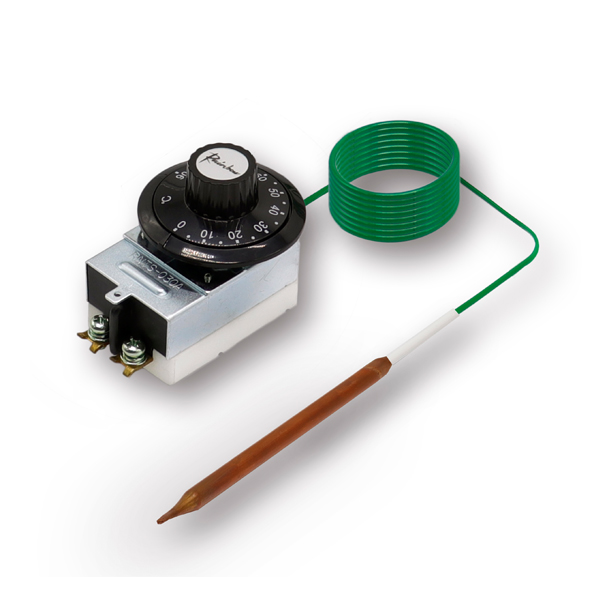

  • RNTS-090CB with B-KNOB
RNTS-120S 0°C~120°C 30A/250V Ø8.0 X 166mm SPST ±4°C Learn more...
  • RNTS-120S BASIC TYPE
  • RNTS-120SB with B-KNOB

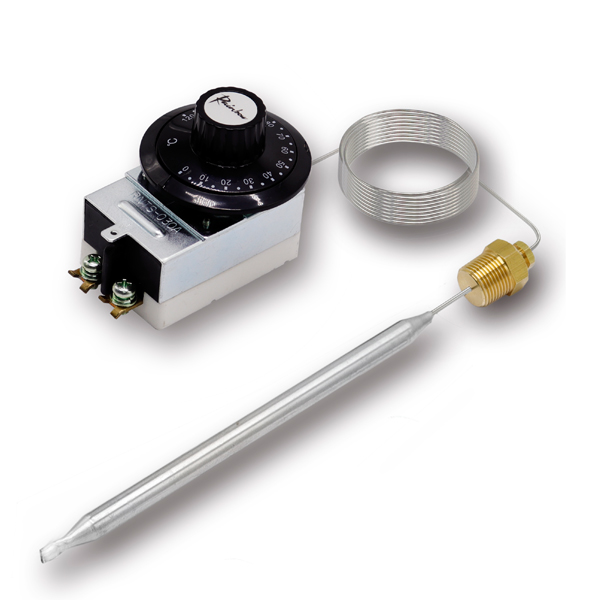

  • RNTS-120SB-C with B-KNOB/PLUG
RNTS-320S 50°C~320°C 30A/250V Ø5.8 X 145mm SPST ±10°C Learn more...
  • RNTS-320S BASIC TYPE

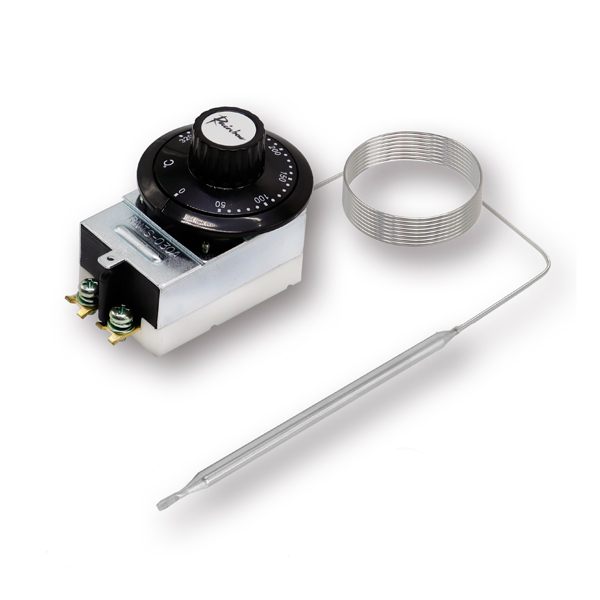

  • RNTS-320SB with B-KNOB
