Products

Adjustable Themostat

RPT-Series

Widely used in commercial kitchen equipment, heating and cooling applications, and industrial equipment, the RPT Series is designed to be installed in small and narrow spaces.
It can be customized to fit the customer's requirements.

Features

  • Temp Range : Max. 320°C (608°F)
  • Switch Life Cycle : 100,000 Cycles
  • Bulb & Capillary Tube : 300 Series Stainless Steel
  • Optional with Bulb/Terminal Type
  • Capillary Tube Length : 1,000mm
  • (250mm to 2,000mm)
  • Electric Rating : 20A/250VAC
  • Switch Type : SPST, SPDT

Applications

  • Cooking Equipment (Fryers, Ovens, Dishwashers)
  • Boilers, Water Heaters
  • Sterilizers, Dryers
  • Heating & Cooling Equipment
  • Industrial Facilities
  • Laboratory Facilities
  • Greenhouses, Warehouses
  • Saunas/Spas

Main Model

Model Temp Range Electric Ratings Bulb Dimensions Switch Accuracy
RPT-050S 0°C~50°C 20A/250V Ø5.8 X 127mm SPST/SPDT ±2°C Learn more...

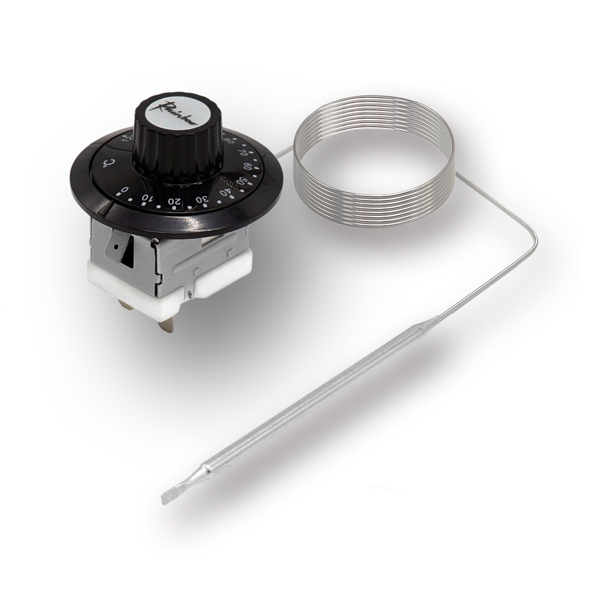

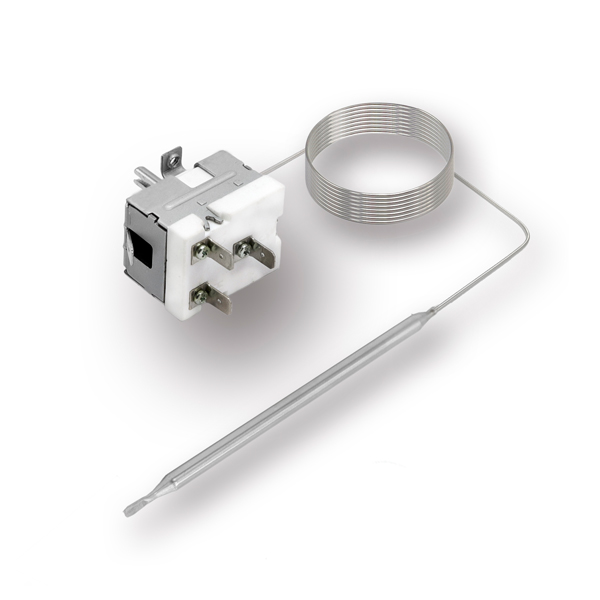

  • RPT-050S BASIC TYPE
  • RPT-050SB with B-KNOB
RPT-120S 0°C~120°C 20A/250V Ø5.0 X 106mm SPST/SPDT ±3°C Learn more...

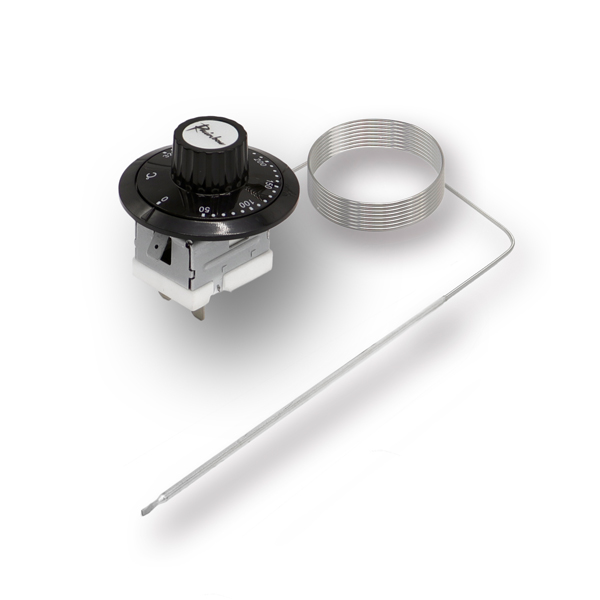

  • RPT-120S BASIC TYPE
  • RPT-120SB with B-KNOB
RPT-320S 50°C~320°C 20A/250V Ø3.0 X 144mm SPST/SPDT ±11°C Learn more...
  • RPT-320S BASIC TYPE
  • RPT-320SB with B-KNOB
