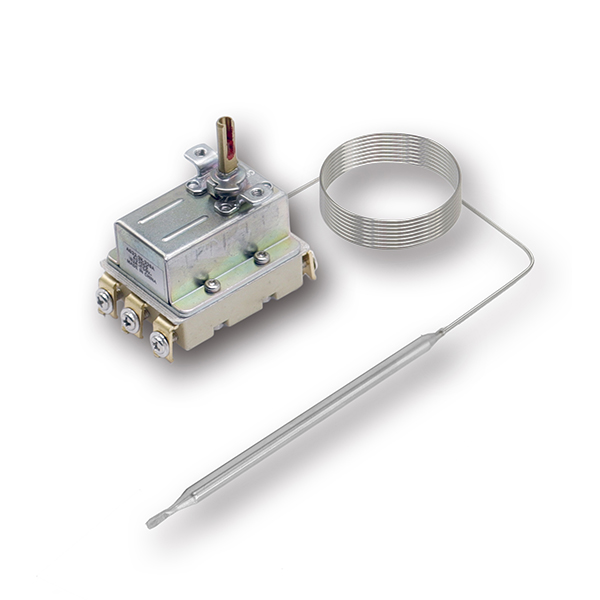

Adjustable Themostat
AG32-Series
The AG32 is designed for Three Poles and High Capacity and is capable of
anode blocking and can be used up to 32A/250VAC.
They are strong and durable and can be installed/connected directly to a
high-capacity heater without implementing magnet switches or a separate
relays.
Features
- Temp Range : 0°C to 120°C / 50°C to 320°C
- Capillary Tube Length : 900mm
- Electric Rating : 32A/250VAC
- Switch Type : Three Pole Single Throw (TPST)
- Direct connection possible without a relay
Applications
- Commercial Kitchen Equipment
- Factory & Industrial Facilities
- Electric Boilers
- Hot Water Heaters
Main Model
Model
Temp Range
Electric Ratings
Bulb Dimensions
Switch
Accuracy
