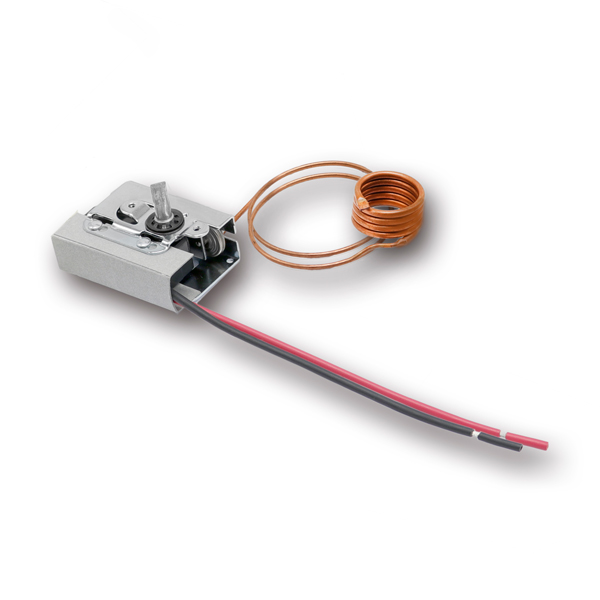

Adjustable Themostat
T103-Series
The T103 Series has a simple structure and a built-in microswitch
that is primarily used in heating and cooling equipment.
Features
- Temp Range : 28°C to 260°C
- (-20°F to 500°F)
- Capillary Tube Length : Max. 3,000mm (10ft
- Bulb Type : 3/16", 1/4", 5/16", 3/8"
- Switch Type : SPST, SPDT
- Electric Rating : 120, 208, 240, 277 VAC
Applications
- Commercial Kitchen Equipment
- Heating & Cooling Applications
- (Air Conditioners/Fan Coils/Coolers)
- Refrigeration & Freezing Facilities
- Industrial Equipment and Devices
Main Model
Model
Temp Range
Electric Ratings
Bulb Dimensions
Switch
Accuracy
TC103-079
-23℃∼22℃ (-10°F~71°F)
22A / 240VAC
Ø7.92X72mm (0.312"X2.85")
SPDT
±2.8℃ (±5.0°F)
Learn more...
-
TC103-079
TD103-221
10℃∼65℃ (50°F∼150°F)
25A / 240VAC
Ø3.18X358mm (0.125"X14.1")
SPST
±3.9℃ (±7.0°F)
Learn more...
-
TD103-221
