Enclosure Thermostats
T115 & T109 Series
The T115/T109 Series is designed to be used under extreme conditions where
there is a high potential of contamination.
It meets the NEMA 4X standard (IP66 level) and is waterproof/dustproof.
This series is often used where a heating & cooling control system is required for
industrial and agricultural applications.

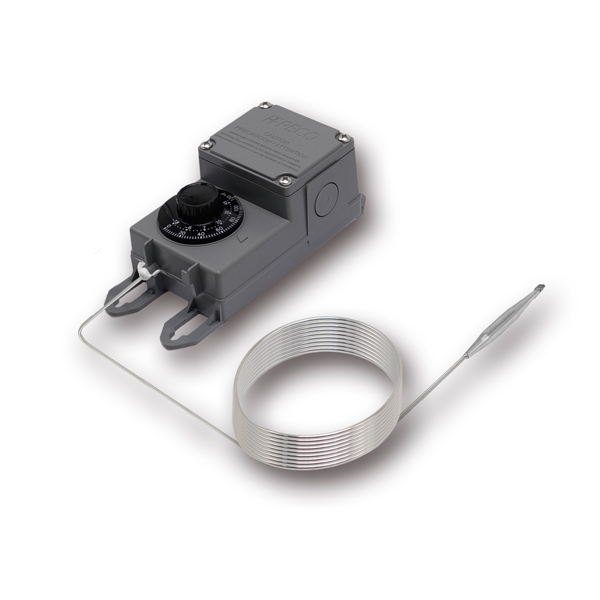

Depending on the model, there is a coil bulb type and rod bulb type.
Features
- Overheating/Overcooling cut off
- N.E.M.A 4X (IP66 level)
- Waterproof/Moisture-proof, Dustproof
- Temp Range: -17°C to 48°C (0°F to 120°F)
- Switch Type: DPDT/SPDT
Applications
- Refrigerators
- Freezers
- Cold Storage
- Greenhouses
- Fan/Damper Control
- Industrial & Laboratory Equipment
Main Model
Model
Temp Range
Electric Ratings
Bulb Dimensions
Switch
Accuracy
TF115-001
4℃∼43℃ (40°F ∼ 110°F)
25A/240VAC
Ø3 Spiral Type
(0.125" Spiral Type) SPDT ±1.7℃ (±3°F) Learn more...
(0.125" Spiral Type) SPDT ±1.7℃ (±3°F) Learn more...
-
TF115-001
TF115P-002
4℃∼43℃ (40°F ∼ 110°F)
13A/120VAC
Ø3 Spiral Type
(0.125" Spiral Type) SPDT ±1.7℃ (±3°F) Learn more...
(0.125" Spiral Type) SPDT ±1.7℃ (±3°F) Learn more...
-
TF115P-002
TF115-023
-30℃∼38℃ (30°F ∼ 100°F)
25A/240VAC
Ø3 Spiral Type
(0.125" Spiral Type) SPDT ±3.9℃ (±7°F) Learn more...
(0.125" Spiral Type) SPDT ±3.9℃ (±7°F) Learn more...
-
TF115-023
TRF115-005
-18℃∼49℃ (0°F ∼ 120°F)
25A/240VAC
Ø7.92X81mm
(0.312"X3.187") SPDT ±3.3℃ (±6°F) Learn more...
(0.312"X3.187") SPDT ±3.3℃ (±6°F) Learn more...
-
TRF115-005
TH109-011
4℃∼38℃ (40°F ∼ 100°F)
25A/240VAC
Ø3 Spiral Type
(0.125" Spiral Type) DPDT ±1.7℃ (±3°F) Learn more...
(0.125" Spiral Type) DPDT ±1.7℃ (±3°F) Learn more...
-
TH109-011
